Difference between Phenyl, Phenylene, Phenol, Benzyl, Benzil, Benzoyl, and Aryl

Contents

I. Introduction

II. Phenyl, Benzyl, and Aryl

III. Phenyl, Phenylene, and Phenol

IV. Benzyl, Benzoyl, and Benzil

V. Conclusion


I. Introduction

New students are often overwhelmed with the number of weird terms that are seemingly similar to each other. I noticed that amongst all those confusing terms, those that get confused with the most are phenyl, benzyl, and aryl.

I also thought, while we’re at it, let’s also talk about other similar terms: phenylene, phenol, benzil, and benzoyl. New students may not have heard of these terms, but more experienced students may find it useful to know their differences.

*** Back to Contents ***


II. Phenyl, Benzyl, and Aryl

Have a look at the structures of phenyl and benzyl in Figure 1 below:

Fig 01 Phenyl vs BenzylFigure 1. Structures of phenyl and benzyl.

Both of them are functional groups derived from benzene and toluene:

  • Phenyl (abbr. Ph) is benzene as a substituent (C6H5—).
  • Benzyl (abbr. Bn) is toluene as a substituent (C6H5CH2—).

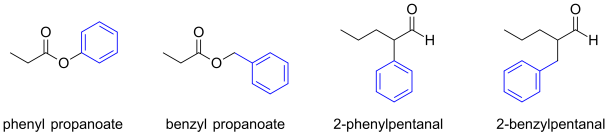

Figure 2 shows the difference between phenyl and benzyl in the series of compounds below:

Fig 02 Phenyl vs Benzyl CompoundsFigure 2. Examples of phenyl- and benzyl-containing compounds.

It is also a common practice to abbreviate phenyl and benzyl when drawing the structures. And as you can see in Figure 3, it saves a lot of space by doing this.

Fig 03 Phenyl vs Benzyl Compounds Abbr
Figure 3. The phenyl and benzyl can be shortened to Ph and Bn respectively.

Fun fact, p-methoxybenzyl (PMB) is commonly used as an alcohol protecting group in organic synthesis, though I won’t show it here so we don’t digress from our main topic.

On the other hand, aryl (abbr. Ar) represents aromatic groups in general as substituents. This can be phenyl, substituted benzenes, naphthyl, pyridyl, etc. As long as it’s aromatic, it can be represented as aryl.

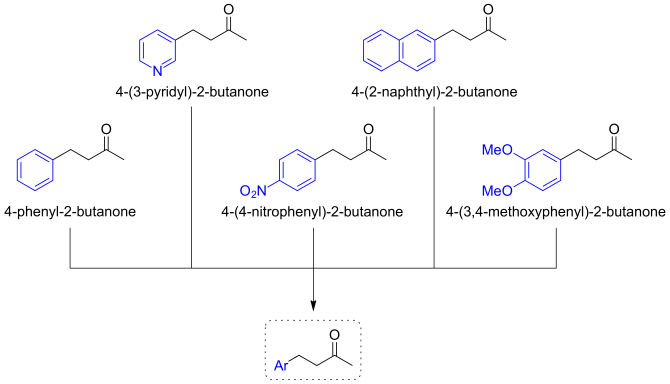

Here are several compounds shown in Figure 4 for example. They can be drawn in general with Ar attached to represent the aromatic substituents.

Fig 04 Aromatics Represented by Ar
Figure 4.
Various aromatic rings can be shortened to Ar.

*** Back to Contents ***


III. Phenyl, Phenylene, and Phenol

Have a look at their structures in Figure 5 below:

Fig 05 Phenyl vs Phenylene vs PhenolFigure 5. Structures of phenyl, phenol, and o-, m-, and p-phenylenes.

I hope you notice the important difference. Phenyl and phenylene are substituents, while phenol is an organic compound.

  • Phenyl (abbr. Ph) is monosubstituted benzene as a substituent (C6H5—).
  • Phenylene (no abbreviation) is disubstituted benzene as a substituent (—C6H4—); and as you can see, the substitution can either be ortho, meta, or para.
  • Phenol is hydroxybenzene, a hydroxyl group bonded to a phenyl group, it has a formula C6H5OH.

Several examples of phenylene-containing compounds can be seen in Figure 6 below.

Fig 06 Phenylene-containing CompoundsFigure 6. Examples of phenylene-containing compounds.

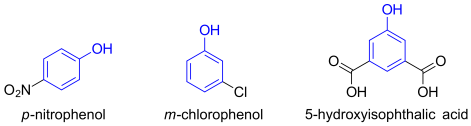

As for phenol, just like any other organic compounds, it can be substituted too. Figure 7 shows several phenol derivatives:

Fig 07 Phenol Derivatives
Figure 7. Examples of phenol-derivatives.

*** Back to Contents ***


IV. Benzyl, Benzoyl, and Benzil

Again, let’s have a look at the structures in Figure 8 below:

Fig 08 Benzyl vs Benzoyl vs BenzilFigure 8. Structures of benzyl, benzoyl, and benzil.

So this is quite interesting: benzyl and benzoyl are substituents, whilst benzil is an organic compound.

  • Benzyl (abbr. Bn) is toluene as a substituent (C6H5CH2—).
  • Benzoyl (abbr. Bz) is C6H5CO— as a substituent.
  • Benzil is an organic compound containing a diketone group, with a formula (C6H5CO)2.

Important: don’t confuse the abbreviations between benzyl (Bn) and benzoyl (Bz), as they are very different substituents!

Another fun fact, benzoyl is commonly used as a protecting group in carbohydrate chemistry!

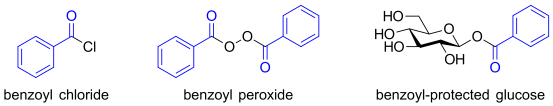

Figure 9 shows several benzoyl-containing examples:

Fig 09 Benzoyl-containing Compounds
Figure 9. Examples of benzoyl-containing compounds.

… which can also be abbreviated to Bz, like in the benzoyl-protected glucose in Figure 10 below:

Fig 10 Benzoyl-protected Glucose
Figure 10. The benzoyl group can be shortened to Bz.

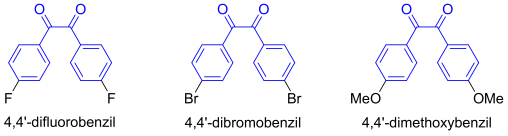

And as for benzil, just like any other organic compounds, it can be substituted too. Figure 11 shows several benzil derivatives that I have personally worked with before:

Fig 11 Benzil DerivativesFigure 11. Examples of benzil derivatives.

*** Back to Contents ***


V. Conclusion

The best way to end this post is to line up all of the terms with their respective structures so you can compare them all directly side by side. Here goes Figure 12!

Fig 12 Phenyl vs Benzyl vs Benzoyl vs Phenol vs Phenylene vs BenzilFigure 12. Structures of phenyl, benzyl, benzoyl, phenol, phenylenes, and benzil.

*** Back to Contents ***
